Description

Stock number: 7722
Brand: Weycor
Type 1: AR680
Type 2: AR 680

Machine: Weycor AR 680
Part number: -

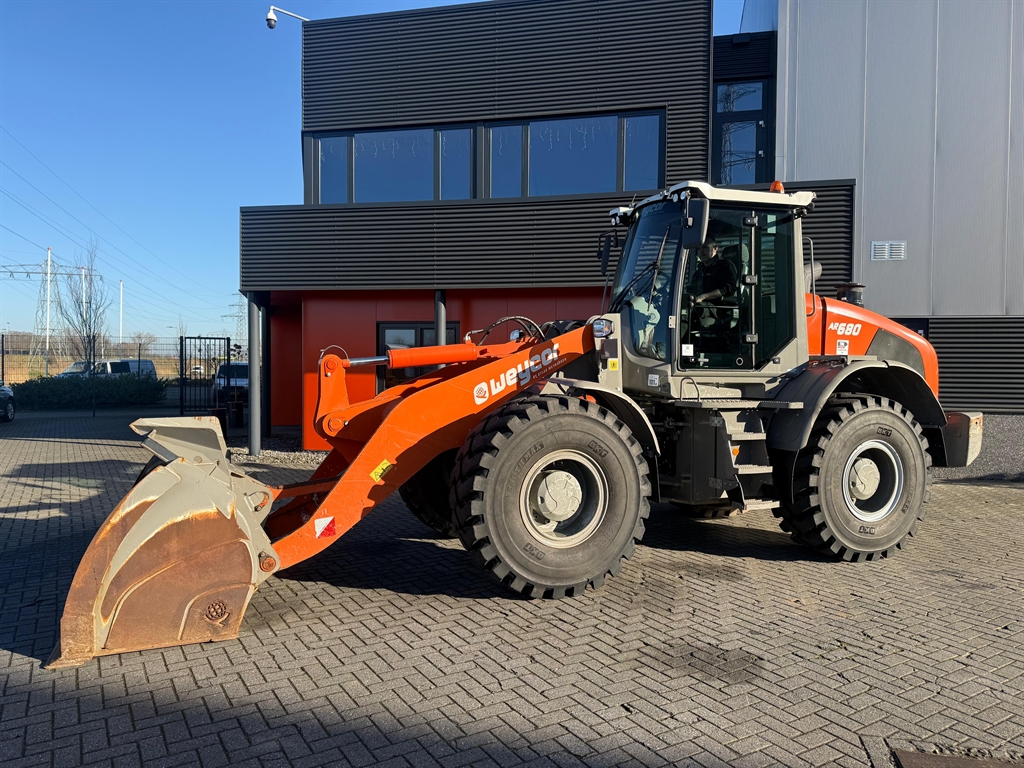

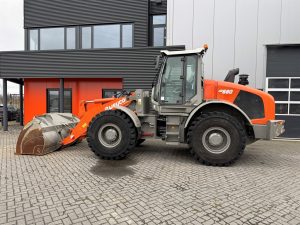

The Weycor AR 680 is a powerful wheel loader (approx. 14.8 tons) equipped with a 160 kW (218 hp) Deutz TCD 6.1 L6 Stage V engine, suitable for heavy-duty use with a bucket capacity of 3.0m3
. With articulated steering, a driving speed of 40 km/h, and a lifting capacity of over 11 tons (extended), this machine offers high productivity.
Engine and Performance
Engine: Deutz TCD 6.1 L6, 6-cylinder in-line, Stage V.
Power: 160 kW (218 hp) @ 2000 rpm.
Torque: 900 Nm.
Drive: Hydrostatic, 40 km/h
Hydraulic power: 190 l/min - 280 bar.
Weights and Lifting Capacity
Operating weight: 14,800 kg.
Tipping load (straight): 11,150 kg.
Tipping load (articulated): 9,745 kg.
Breakout force: 11,900 daN.

Transport length: 7,730 mm.
Transport width: 2,490 mm.
Transport height: 3,260 mm.
Turning radius (outside bucket): 5,497 mm.

Unique Inch Pedal: Separate inch pedal for fine dosing of pushing and lifting force without stressing the service brake.
Maintenance: Centrally located maintenance points and low-noise cabin (69 dB(A)).
Options: 100% electrically engageable differential lock
Weighing system Loadmaster Alpha 50
Automatic lubrication system

(Atlas)
